DNA Segment Comparator
Compare raw DNA files, detect shared segments, and read the relationship at a glance.
A focused Windows desktop tool for one-to-one shared DNA segment analysis. Load two raw genotype files, tune the cM and SNP thresholds, and review IBD1, IBD2, and HBD segments with kinship, relationship degree, and a chromosome browser.
A real comparison, at a glance

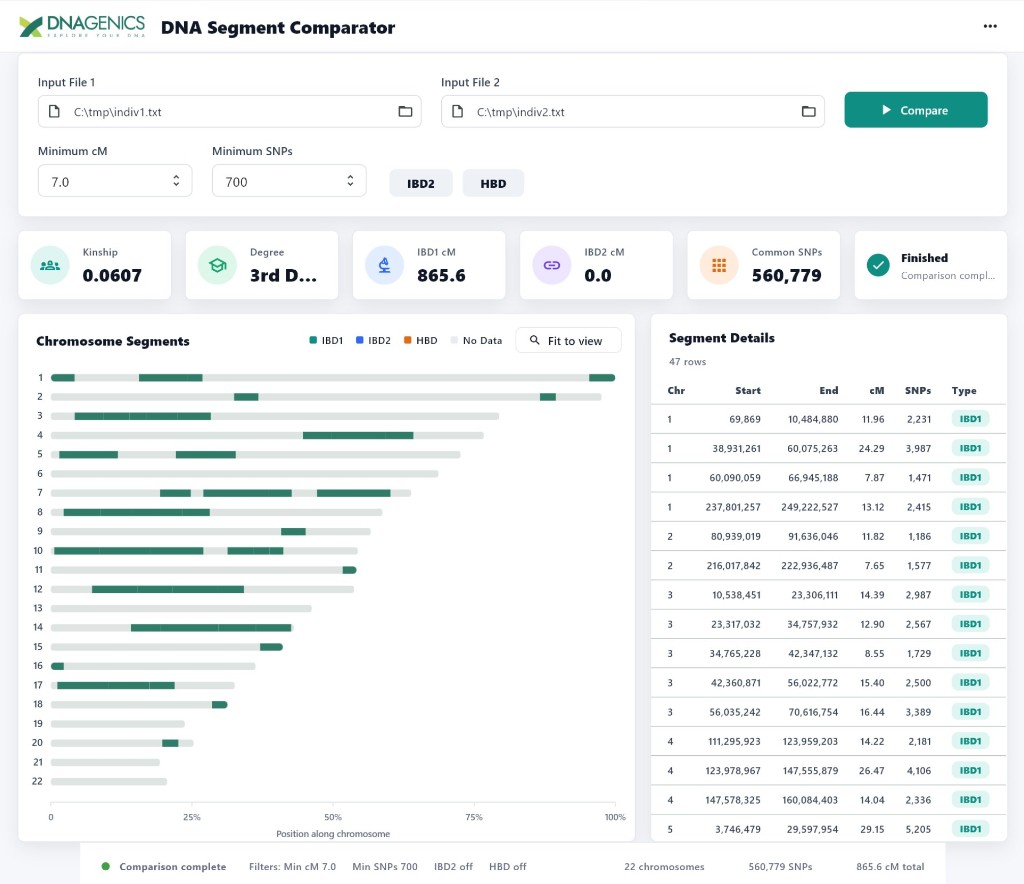

Snapshot of a 3rd-degree match between two raw DNA files using the default thresholds (7.0 cM, 700 SNPs).
Built for genetic genealogy workflows
Everything you need to compare two kits and review the result in one window.
Raw genotype loading
Loads common direct-to-consumer raw genotype text files: TSV, CSV, and whitespace-delimited formats, including 23andMe, AncestryDNA, MyHeritage, and FTDNA exports.
Configurable thresholds
Tune Minimum cM and Minimum SNPs to control sensitivity. Toggle IBD2 and HBD detection on demand.
Chromosome browser
Visualize shared segments across all 22 autosomes with IBD1, IBD2, and HBD color coding, plus a "Fit to view" zoom control.
Kinship and degree summary
Headline cards for kinship coefficient, relationship degree, IBD1 cM, IBD2 cM, and common SNPs, ready to share or screenshot.
Segment details table
Per-segment chromosome, start, end, cM length, SNP count, and type (IBD1, IBD2, HBD), sortable and easy to scan.
Clipboard and TSV export
Copy results to the clipboard or export as TSV for spreadsheets and downstream genetic genealogy tools.
Three steps from raw files to shared segments
Load two raw DNA files
Pick the raw genotype text files for the two individuals you want to compare. The app auto-detects the format and shows the file path.
Choose thresholds
Set Minimum cM (default 7.0) and Minimum SNPs (default 700). Enable IBD2 and HBD if you need closer-relationship or homozygous-by-descent detection.
Compare and export
Hit Compare. Read the kinship, degree, and segment summary. Inspect the chromosome browser, scan the segment table, and copy or export the results.
A clean, single-window analysis surface
Inputs, summary cards, chromosome browser, and segment table on one screen.
What you need
Platform
- OS: Windows 10 version 17763.0 or higher
- Architecture: PC (x64)
- Input: Integrated keyboard and mouse (minimum)
Package
- Approximate size: 36.9 MB
- Languages: English (United States)
- Category: Developer tools
- Released: May 11, 2026
Frequently asked questions
DNA Segment Comparator is a Windows desktop application that compares two raw DNA genotype files and identifies shared DNA segments. It computes IBD1, IBD2, and HBD segments, kinship, and relationship degree, and shows results in a chromosome browser plus segment table.
It supports common direct-to-consumer raw genotype files including 23andMe, AncestryDNA, MyHeritage, FTDNA, LivingDNA and any compatible text, TSV, CSV, or whitespace-delimited file with RSID, chromosome, position, and genotype columns.
They filter the segments shown as matches. Only segments at least Minimum cM long (in centimorgans) and covering at least Minimum SNPs are reported. Defaults are 7.0 cM and 700 SNPs, common values in genetic genealogy.
IBD1 means one chromosome copy is identical-by-descent at that segment (one shared parent line). IBD2 means both copies match (closer relationships such as full siblings). HBD (homozygous-by-descent) flags regions where the same haplotype is inherited from both parents, often a signal of distant common ancestry on both sides.
Kinship roughly maps to relationship class: parent/child or full siblings are around 0.25, first cousins around 0.0625, third cousins around 0.0078. The relationship degree column gives a quick interpretation (1st, 2nd, 3rd degree, etc.).
Yes. Results can be copied to the clipboard or exported as TSV, ready to paste into spreadsheets or feed into downstream genetic genealogy tools.
Windows 10 version 17763.0 or higher, integrated keyboard and mouse, English (United States). Approximate install size is 36.9 MB.
DNA Segment Studio is a broader desktop suite that includes segment merging, extracting, and bulk workflows. DNA Segment Comparator is a focused, Microsoft Store-distributed comparator for one-to-one shared-segment analysis with a simplified, modern interface.
Ready to compare?
Install DNA Segment Comparator from Microsoft Store and start analyzing shared DNA segments today.
18,99€ on Microsoft Store. Regional pricing applies.
Disclaimer: DNA Segment Comparator is provided for informational and research purposes only. It is not intended for medical diagnosis, treatment decisions, or legal determinations.
